Ethylene Amines - epoxy cure agents
Ethylene amines are used in the Chemical, Agricultural, Pharmaceutical, Paper and Paint industries. They are water soluble and slightly viscous liquids with ammoniacal odour and chemical reactivities. These chemical reactivities are dependent upon primary and secondary amino groups. For coatings applications they are offered as Epoxy Curing Agents.

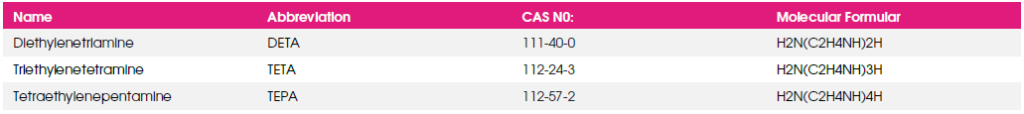

| Name | Abbreviation | CAS NO: | Molecular Formular |
|---|---|---|---|
|
Diethylenetriamine |
DETA |
111-40-0 |
H2N(C2H4NH)2H |
|
Triethylenetetramine |
TETA |
112-24-3 |
H2N(C2H4NH)4H |
|
Tetraethylenepentamine |
TEPA |
112-57-2 |
H2N(C2H4NH)4H |

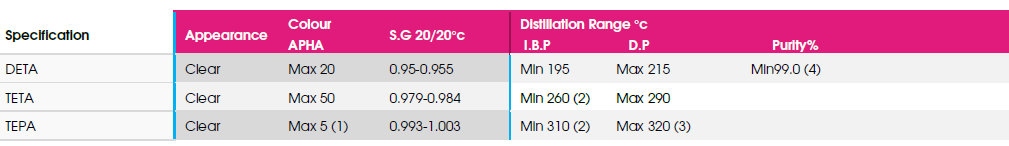

| Specification |
|---|
|
DETA |
|
TETA |
|
TEPA |
| Appearance | Colour APHA | S.G 20/20°c |
|---|---|---|
|
Clear |
Max 20 |
0.95-0.955 |
|
Clear |
Max 50 |
0.979-0.984 |
|
Clear |
Max 5 (1) |
0.993-1.003 |
Distillation Range °c
| I.B.P | D.P | Purity % |
|---|---|---|
|
Min 195 |
Max 215 |
Min99.0 (4) |
|
Min 260 (2) |
Max 290 |
|
|
Min 310 (2) |
Max 320 (3) |
(1)Colour Gardner (2) 5% (3)50% (4) Gas Chromatography

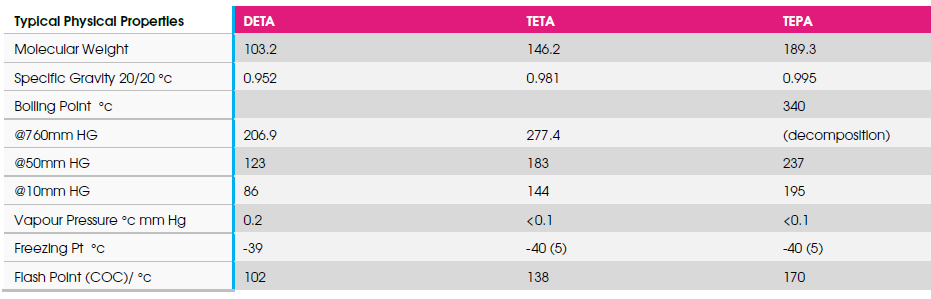

| Typical Physical Properties |
|---|
|
Molecular Weight |
|
Specific Gravity 20/20 °c |
|
Boiling Point °c |
|
@760mm HG |
|
@50mm HG |
|
@10mm HG |
|
Vapour Pressure °c mm Hg |
|
Freezing Pt °c |
|
Flash Point (COC)/ °c |
| DETA | TETA | TEPA |
|---|---|---|
|
103.2 |
146.2 |
189.3 |
|
0.952 |
0.981 |
0.995 |
|
. |
. |
340 |
|
206.9 |
277.4 |
|
|
123 |
183 |
237 |
|
86 |
144 |
195 |
|
0.2 |
<0.1 |
<0.1 |
|
-39 |
-40 (5) |
-40 (5) |
|
102 |
138 |
170 |
(5) Pour Point
| Uses |
|---|
|
Paper Additives (Modifying Agents) |
|
Chelating agents |
|
Epoxy resin curing agents |
|
Corrosion inhibitors |
|
Polyamide resins |
|
Oil additives |
|
Surface-active Agents |
|
Intermediates for textile finishing resins |
|
Ion exchange resins |
| DETA | TETA | TEPA |
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
